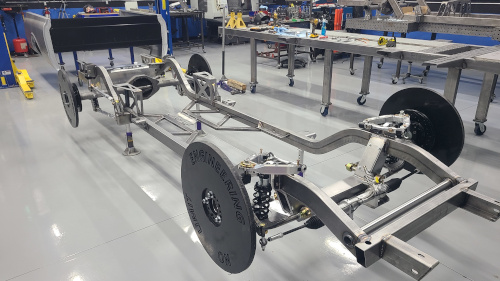

Our custom built chassis are made from 4x2 .120 wall mandrel bent tubing, with IMSA style front geometry for great autocross racing and cross country driving.
All of our chassis are TIG welded with high tensile strength rod and CNC cut 3/16 .188 cold rolled plate steel.
Front brakes are Wilwood 6 piston front calipers with 14” 1.10 thick rotors
Rear brakes are Wilwood 4 piston rear calipers with 12” .810 thick rotors
QA1 double adjustable coil overs front and rear, your specific the spring rate.
Adjustable power rack and pinion steering mount, quick adjustable caster/camber upper control arm mounts and Joe's Racing cross shaft.
Billet adjustable front coil over mount.
Billet upper and lower control arms machined in house out of T6 6061 billet aluminum.
Bolt in engine mount plates for adaptability to any engine combination with adjustable transmission mounts.
Adjustable 4 link rear suspension with billet links and billet watts link for consistent centering of rear end through suspension travel.
Fabricated Ford 9 inch with big Ford bearings and adjustable rear suspension link mounts with billet rear adjustable coil over mount.
Front and Rear swaybar mounts.
Billet battery mount.
Rear fuel cell mounts.
Available upgrade options:
*Winters Performance quick change rearend (price depends on style and options)
*Mittler Bros. Hydroshox $6200 Installed with commercial grade supply line hoses.
*Mittler Bros E level ride management system Mitler Bros reatil cost No Mark Up!
*Fuel Cell Price depends on style and size No Mark Up!
*Raised bolt on bed mounts $300
*Billet machined aluminum body mount mount pucks $300
*Any fabrication requests within reason are free of charge
Custom billet machining also available $150 design charge, $100 per hour machining time plus materials
